# 메타분석 웹 개발 후기
## <a href="https://github.com/shinykorea/Meetup">Shinykorea 밋업</a>
### 김진섭; <a href="https://github.com/jinseob2kim"><span><i class="fab  fa-github faa-float animated "></i>jinseob2kim</span></a>
### 차라투
### 2020-08-28

---

layout: true

<div class="my-footer"><span><a href="https://www.zarathu.com">Zarathu Co.,Ltd</a>
&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;
&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;
<a href="https://github.com/jinseob2kim">김진섭</a></span></div>

---
# Executive Summary

.large[
**메타분석**은 여러 연구결과를 합쳐서 보여주는 분석, [meta](https://cran.r-project.org/package=meta) 패키지를 ShinyApps 로 구현하였다.

- [rhandsontable](https://cran.r-project.org/package=rhandsontable) 로 연구결과를 직접 입력한다.

- 서버에 한글폰트 설치 후 [showtext](https://cran.r-project.org/package=showtext) 로 불러와 한글깨짐을 해결한다.

- [colourpicker](https://cran.r-project.org/package=colourpicker) 로 글자색 조절한다.

- **EMF** 포맷 다운로드를 지원, PPT에서 직접 그림수정할 수 있다.
]

---
# 메타분석

![](https://mblogthumb-phinf.pstatic.net/MjAxODA1MzBfODQg/MDAxNTI3NjQzNjg1NjA2.3oQ6vLm7d0yML0q5ohLvSV1uYobZ-eNVmPp_jVMM8Bog.L5XPNwr9Z_GtTnYC4qdnF_zeCdY20Ok4-JPPysM2F70g.JPEG.ecotogether/4metaanalysishoriz.jpg?type=w800)

[Doing Meta Analysis in R](https://bookdown.org/MathiasHarrer/Doing_Meta_Analysis_in_R/) 책 추천

---
# My ShinyApps

[![](https://blog.zarathu.com/posts/2020-08-22-meta-analysis-shiny/meta.png)](http://app.zarathu.com/meta-analysis)

---
# 테이블입력: [rhandsontable](https://cran.r-project.org/package=rhandsontable)

.large[
**csv** 다운로드, **행/열 추가**도 가능.

- 메타분석웹은 행추가 옵션만 추가했음 (default)
]

```r
library(shiny)
ui = fluidPage(
        selectInput("inputtype", "Input type", c("Measure & 95% CI", "Event & N", "Mean & S.D")),
*       rHandsontableOutput("hot"),
        DT::DToutput("table")
    )
)
```

---

```r
# In server
output$hot <- renderRHandsontable({
        DF <- switch(input$inputtype,
                     "Measure & 95% CI" = data.default,
                     "Event & N" = data.bin,
                     "Mean & S.D" = data.cont
                     )

rhandsontable(DF,  stretchH = "all") %>%
            hot_context_menu(
                customOpts = list(
                    csv = list(name = "Download to CSV",
                               callback = htmlwidgets::JS(
                                   "function (key, options) {
                         var csv = csvString(this, sep=',', dec='.');

var link = document.createElement('a');
                         link.setAttribute('href', 'data:text/plain;charset=utf-8,' +
                           encodeURIComponent(csv));
                         link.setAttribute('download', 'data.csv');

document.body.appendChild(link);
                         link.click();
                         document.body.removeChild(link);
                       }"))))
    })
```

---
# 저장

.large[
`hot_to_r` 함수 이용 **data.frame**으로 저장.
]

```r
output$table <- DT::renderDT({
* DF <- hot_to_r(input$hot)
  datatable(DF)
})

```

---
# 한글깨짐: [showtext](https://cran.r-project.org/package=showtext)

나눔폰트: 우분투 기준 `/usr/share/fonts/truetype/nanum/` 에 저장됨.

```sh
sudo apt-get install fonts-nanum-coding
```

`app.R` 시작부분에 아래 코드 실행

```r
library(showtext)
showtext_opts(dpi = 90) ## 작을수록 글씨 커짐
font_add("NanumGothic", "/usr/share/fonts/truetype/nanum/NanumGothic.ttf")
showtext_auto()
```

---

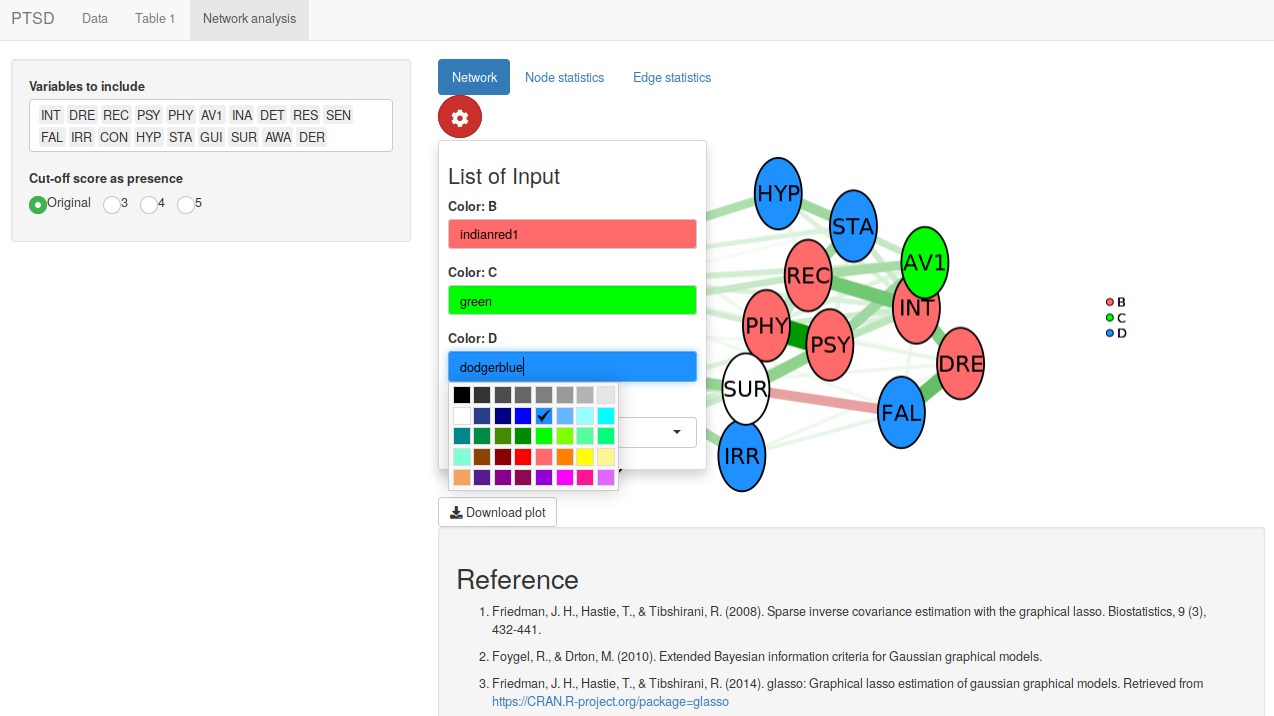

# [colourpicker](https://github.com/daattali/colourpicker) - color UI

```r
library(shiny)
shinyApp(
    ui = fluidPage(
*       colourpicker::colourInput("col", "Select colour", "purple", palette = "limited"),
        plotOutput("plot")
    ),
    server = function(input, output) {
        output$plot <- renderPlot({
            set.seed(1)
            plot(rnorm(50), bg = input$col, col = input$col, pch = 21)
        })
    }
)
```

![](https://raw.githubusercontent.com/jinseob2kim/PresentationShinyMed/master/docs/qgraph.png)

---
# EMF

[devEMF](https://cran.r-project.org/package=devEMF) 패키지 이용, `emfPlus` 는 투명지원기능인데 **F** 가 안전.

```r
*devEMF::emf("plot.emf", width = 7, height = 7, emfPlus = F)
ggplot(mtcars, aes(mpg, cyl)) + geom_point()
dev.off()
```
