# Executive summary

- 확진자수 등 **실제 데이터를 활용**, parameter 들을 추정.

- SEIR 에 서울시 확진자수를 적용, **시간에 따라 변화하는 감염률**을 계산함.

- Parameter와 그 파생지표의 범위를 제한하고 신뢰구간을 계산하기 위해, **베이지안통계** 이용 예정.
]

---
class: center, middle

# 감염병 수리모형 소개

---
# SIR model

---
# `$\beta$`, `$\gamma$`

`$\gamma$`: 회복률

`$$\frac{1}{\gamma}: \text{평균회복시간(일)}$$`

감염재생산수 `$R_0 = \frac{\beta}{\gamma}$`
- `$> 1$` 유행, `$< 1$` 소멸
]

---
# [SEIR model](https://covid19.uclaml.org/model.html)

$$
`\begin{align}
      \frac{d S}{d t}&= -\frac{\beta I S}{N}\\
      \frac{d E}{d t}&= \frac{\beta I S}{N} -\theta E\\
      \frac{d I}{d t}&= \theta E - \gamma I\\
      \frac{d R}{d t}&=\gamma I
\end{align}`
$$
]

---
# Simulation
.large[
https://benbennben.github.io/covid-19/

- 미분방정식(사실은 점화식) 은 초기값( `$S, I, R$` ), parameter( `$\beta$`, `$\gamma$` )가 정해지면 단순계산으로 구할 수 있다.

- 그럼 끝?

]

- 서울시분석: 회복기간( `$\frac{1}{\gamma}$` ) 6.8일, 잠재기( `$\frac{1}{\theta}$` ) 3.5 일 가정, `$\beta$` 는 추정.
]

---
# 보도자료

https://www.nrc.re.kr/board.es?mid=a10301000000&bid=0008&list_no=171543&act=view&nPage=1&otp_id=

---
# 추정 과정

2. SEIR 모델: `$\beta$` 만 추정( `$\gamma$`, `$\theta$` 고정)

3. `$\beta$` 시간에 따라 변한다고 가정.
- B-Spline Basis For Polynomial Splines 이용: 여러 3차함수 조합
- Basis 함수 갯수만큼 parameter 존재

4. 최소제곱 or 포아송분포: 실제 확진자수를 가장 잘 맞추는 `$\beta$` 선택
]

---
# [Data](http://data.seoul.go.kr/dataList/OA-20279/S/1/datasetView.do)

<div data-pagedtable="false">
  <script data-pagedtable-source type="application/json">
{"columns":[{"label":["연번"],"name":[1],"type":["int"],"align":["right"]},{"label":["확진일"],"name":[2],"type":["date"],"align":["right"]},{"label":["환자번호"],"name":[3],"type":["lgl"],"align":["right"]},{"label":["국적"],"name":[4],"type":["lgl"],"align":["right"]},{"label":["환자정보"],"name":[5],"type":["lgl"],"align":["right"]},{"label":["지역"],"name":[6],"type":["chr"],"align":["left"]},{"label":["여행력"],"name":[7],"type":["chr"],"align":["left"]},{"label":["접촉력"],"name":[8],"type":["chr"],"align":["left"]},{"label":["조치사항"],"name":[9],"type":["lgl"],"align":["right"]},{"label":["상태"],"name":[10],"type":["chr"],"align":["left"]},{"label":["이동경로"],"name":[11],"type":["chr"],"align":["left"]},{"label":["등록일"],"name":[12],"type":["chr"],"align":["left"]},{"label":["수정일"],"name":[13],"type":["chr"],"align":["left"]},{"label":["노출여부"],"name":[14],"type":["chr"],"align":["left"]}],"data":[{"1":"21922","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동대문구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21921","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강동구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21920","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강동구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21919","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동작구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21918","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"기타","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21917","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"타시도","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21916","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"기타","7":"","8":"동부구치소 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21915","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"기타","7":"","8":"동부구치소 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21914","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"기타","7":"","8":"동부구치소 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21913","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"기타","7":"","8":"동부구치소 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21912","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"기타","7":"","8":"동부구치소 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21911","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"기타","7":"","8":"동부구치소 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21910","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"기타","7":"","8":"동부구치소 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21909","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강북구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21908","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강서구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21907","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"성북구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21906","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"성북구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21905","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"타시도","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21904","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"성북구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21903","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강서구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21902","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"송파구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21901","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"송파구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21900","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"은평구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21899","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"도봉구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21898","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"은평구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21897","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"은평구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21896","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강동구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21895","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강동구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21894","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"타시도","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21893","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"성북구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21892","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강남구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21891","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강남구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21890","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"성북구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21889","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"성북구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21888","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강남구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21887","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강서구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21886","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동작구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21885","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"중랑구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21884","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"관악구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21883","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"관악구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21882","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"중구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21881","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21880","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"미국","8":"해외유입","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21879","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"타시도","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21878","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21877","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"마포구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21876","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"영등포구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21875","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"용산구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21874","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"강동구 가족관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21873","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"영등포구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21872","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강남구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21871","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"타시도 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21870","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21869","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"강동구 가족관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21868","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"강동구 가족관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21867","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21866","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"송파구","7":"","8":"병원 및 요양시설","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21865","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"도봉구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21864","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동작구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21863","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강북구","7":"","8":"병원 및 요양시설","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21862","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"금천구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21861","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동대문구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21860","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"중구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21859","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"중구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21858","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"영등포구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21857","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"송파구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21856","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강남구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21855","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"중구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21854","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동작구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21853","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동작구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21852","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동대문구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21851","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"성동구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21850","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"광진구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21849","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동대문구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21848","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"중랑구","7":"","8":"타시도 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21847","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강서구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21846","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강서구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21845","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동대문구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21844","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"타시도","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21843","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"도봉구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21842","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강서구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21841","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"동작구","7":"","8":"강남구 소재 직장 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21840","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"마포구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21839","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"마포구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21838","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"도봉구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21837","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"도봉구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21836","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강서구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21835","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"양천구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21834","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"도봉구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21833","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"마포구","7":"","8":"강동구 가족 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21832","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"노원구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21831","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강동구","7":"","8":"강동구 가족 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21830","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강동구","7":"","8":"타시도 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21829","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"종로구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21828","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"타시도","7":"","8":"구로구 소재 요양병원/요양원 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21827","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"타시도","7":"","8":"구로구 소재 요양병원/요양원 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21826","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"양천구","7":"","8":"양천구 소재 요양시설Ⅱ 관련","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21825","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"송파구","7":"","8":"기타 확진자 접촉","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21824","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"송파구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"},{"1":"21823","2":"2021-01-12","3":"NA","4":"NA","5":"NA","6":"강남구","7":"","8":"감염경로 조사중","9":"NA","10":"","11":"","12":"2021-01-13 11:18:11","13":"2021-01-13 11:18:11","14":"Y"}],"options":{"columns":{"min":{},"max":[10]},"rows":{"min":[10],"max":[10]},"pages":{}}}
  </script>
</div>

---
# 확진자 수

.large[
앞 데이터 이용
]
<div data-pagedtable="false">
  <script data-pagedtable-source type="application/json">
{"columns":[{"label":["확진일"],"name":[1],"type":["date"],"align":["right"]},{"label":["지역"],"name":[2],"type":["chr"],"align":["left"]},{"label":["N"],"name":[3],"type":["int"],"align":["right"]}],"data":[{"1":"2020-02-20","2":"강남구","3":"1"},{"1":"2020-02-26","2":"강남구","3":"2"},{"1":"2020-02-27","2":"강남구","3":"2"},{"1":"2020-02-28","2":"강남구","3":"2"},{"1":"2020-02-29","2":"강남구","3":"1"},{"1":"2020-03-01","2":"강남구","3":"2"},{"1":"2020-03-06","2":"강남구","3":"2"},{"1":"2020-03-08","2":"강남구","3":"1"},{"1":"2020-03-12","2":"강남구","3":"1"},{"1":"2020-03-14","2":"강남구","3":"1"},{"1":"2020-03-18","2":"강남구","3":"2"},{"1":"2020-03-19","2":"강남구","3":"1"},{"1":"2020-03-23","2":"강남구","3":"1"},{"1":"2020-03-24","2":"강남구","3":"1"},{"1":"2020-03-25","2":"강남구","3":"4"},{"1":"2020-03-26","2":"강남구","3":"4"},{"1":"2020-03-27","2":"강남구","3":"2"},{"1":"2020-03-28","2":"강남구","3":"5"},{"1":"2020-03-29","2":"강남구","3":"4"},{"1":"2020-03-30","2":"강남구","3":"1"},{"1":"2020-03-31","2":"강남구","3":"4"},{"1":"2020-04-03","2":"강남구","3":"5"},{"1":"2020-04-04","2":"강남구","3":"2"},{"1":"2020-04-06","2":"강남구","3":"4"},{"1":"2020-04-07","2":"강남구","3":"1"},{"1":"2020-04-08","2":"강남구","3":"1"},{"1":"2020-04-09","2":"강남구","3":"1"},{"1":"2020-04-10","2":"강남구","3":"2"},{"1":"2020-04-16","2":"강남구","3":"1"},{"1":"2020-04-17","2":"강남구","3":"1"},{"1":"2020-04-18","2":"강남구","3":"1"},{"1":"2020-04-27","2":"강남구","3":"2"},{"1":"2020-05-09","2":"강남구","3":"1"},{"1":"2020-05-10","2":"강남구","3":"4"},{"1":"2020-05-14","2":"강남구","3":"1"},{"1":"2020-05-15","2":"강남구","3":"1"},{"1":"2020-05-19","2":"강남구","3":"1"},{"1":"2020-05-29","2":"강남구","3":"2"},{"1":"2020-05-31","2":"강남구","3":"1"},{"1":"2020-06-02","2":"강남구","3":"1"},{"1":"2020-06-03","2":"강남구","3":"1"},{"1":"2020-06-04","2":"강남구","3":"1"},{"1":"2020-06-16","2":"강남구","3":"1"},{"1":"2020-06-22","2":"강남구","3":"1"},{"1":"2020-06-24","2":"강남구","3":"1"},{"1":"2020-06-27","2":"강남구","3":"1"},{"1":"2020-07-02","2":"강남구","3":"1"},{"1":"2020-07-04","2":"강남구","3":"1"},{"1":"2020-07-09","2":"강남구","3":"2"},{"1":"2020-07-10","2":"강남구","3":"1"},{"1":"2020-07-11","2":"강남구","3":"1"},{"1":"2020-07-13","2":"강남구","3":"2"},{"1":"2020-07-17","2":"강남구","3":"1"},{"1":"2020-07-18","2":"강남구","3":"1"},{"1":"2020-07-22","2":"강남구","3":"3"},{"1":"2020-07-26","2":"강남구","3":"1"},{"1":"2020-07-30","2":"강남구","3":"1"},{"1":"2020-08-07","2":"강남구","3":"3"},{"1":"2020-08-11","2":"강남구","3":"1"},{"1":"2020-08-14","2":"강남구","3":"5"},{"1":"2020-08-15","2":"강남구","3":"3"},{"1":"2020-08-16","2":"강남구","3":"1"},{"1":"2020-08-17","2":"강남구","3":"2"},{"1":"2020-08-18","2":"강남구","3":"6"},{"1":"2020-08-19","2":"강남구","3":"5"},{"1":"2020-08-20","2":"강남구","3":"5"},{"1":"2020-08-21","2":"강남구","3":"5"},{"1":"2020-08-22","2":"강남구","3":"7"},{"1":"2020-08-23","2":"강남구","3":"5"},{"1":"2020-08-24","2":"강남구","3":"5"},{"1":"2020-08-25","2":"강남구","3":"6"},{"1":"2020-08-26","2":"강남구","3":"3"},{"1":"2020-08-27","2":"강남구","3":"4"},{"1":"2020-08-28","2":"강남구","3":"4"},{"1":"2020-08-29","2":"강남구","3":"4"},{"1":"2020-08-30","2":"강남구","3":"3"},{"1":"2020-08-31","2":"강남구","3":"12"},{"1":"2020-09-01","2":"강남구","3":"9"},{"1":"2020-09-02","2":"강남구","3":"3"},{"1":"2020-09-03","2":"강남구","3":"4"},{"1":"2020-09-04","2":"강남구","3":"4"},{"1":"2020-09-05","2":"강남구","3":"4"},{"1":"2020-09-06","2":"강남구","3":"1"},{"1":"2020-09-07","2":"강남구","3":"2"},{"1":"2020-09-08","2":"강남구","3":"2"},{"1":"2020-09-09","2":"강남구","3":"1"},{"1":"2020-09-10","2":"강남구","3":"1"},{"1":"2020-09-11","2":"강남구","3":"4"},{"1":"2020-09-12","2":"강남구","3":"3"},{"1":"2020-09-13","2":"강남구","3":"4"},{"1":"2020-09-14","2":"강남구","3":"7"},{"1":"2020-09-15","2":"강남구","3":"1"},{"1":"2020-09-16","2":"강남구","3":"6"},{"1":"2020-09-17","2":"강남구","3":"4"},{"1":"2020-09-18","2":"강남구","3":"6"},{"1":"2020-09-19","2":"강남구","3":"4"},{"1":"2020-09-20","2":"강남구","3":"2"},{"1":"2020-09-22","2":"강남구","3":"1"},{"1":"2020-09-23","2":"강남구","3":"2"},{"1":"2020-09-24","2":"강남구","3":"1"}],"options":{"columns":{"min":{},"max":[10]},"rows":{"min":[10],"max":[10]},"pages":{}}}
  </script>
</div>

---
# 인구수
<div data-pagedtable="false">
  <script data-pagedtable-source type="application/json">
{"columns":[{"label":["자치구"],"name":[1],"type":["chr"],"align":["left"]},{"label":["인구"],"name":[2],"type":["int"],"align":["right"]}],"data":[{"1":"합계","2":"9953009"},{"1":"종로구","2":"159842"},{"1":"중구","2":"135321"},{"1":"용산구","2":"244953"},{"1":"성동구","2":"302695"},{"1":"광진구","2":"361923"},{"1":"동대문구","2":"358679"},{"1":"중랑구","2":"400989"},{"1":"성북구","2":"449871"},{"1":"강북구","2":"313550"},{"1":"도봉구","2":"329300"},{"1":"노원구","2":"529532"},{"1":"은평구","2":"485842"},{"1":"서대문구","2":"323860"},{"1":"마포구","2":"383494"},{"1":"양천구","2":"460048"},{"1":"강서구","2":"589536"},{"1":"구로구","2":"435751"},{"1":"금천구","2":"249641"},{"1":"영등포구","2":"405982"},{"1":"동작구","2":"404617"},{"1":"관악구","2":"514555"},{"1":"서초구","2":"429995"},{"1":"강남구","2":"544085"},{"1":"송파구","2":"676673"},{"1":"강동구","2":"462275"}],"options":{"columns":{"min":{},"max":[10]},"rows":{"min":[10],"max":[10]},"pages":{}}}
  </script>
</div>

---
# SEIR model

```r
incidata <- inci[지역 == "합계"]
times   <- seq(0, nrow(incidata) - 1, by = 1)
tt <- seq(min(times), max(times), len = max(times) +1)
*B  <- splines::bs(tt, knots = seq(min(times), max(times), len = ceiling(nrow(incidata)/7)), Boundary.knots = c(min(times), max(times)+1), degree = 3)


covODE <- function(time, state, modelparams) {
    with(as.list(c(state, modelparams)), {
      ## modelparams 1, 2: theta, gamma
*     beta <- exp(predict(B, time) %*% modelparams[-c(1, 2)])
      N <- S + E + I + R
      dS <- -beta*S*I/N
      dE <- beta*S*I/N - theta*E
      dI <- theta*E - gamma*I
      dR <- gamma*I
      return(list(c(dS, dE, dI, dR)))
    })
  }
```

---

<div class="figure" style="text-align: center">
<img src="index_files/figure-html/unnamed-chunk-5-1.png" alt="B-splines of degree 3"  />
<p class="caption">B-splines of degree 3</p>
</div>

---
# 오차함수

```r
## Least square: x- basis parameter
ftemp <- function(x) {
  modelparams <- c(c(theta = 1/3.5, gamma = 1/6.8), x)
  tempoutput <- as.data.frame(ode(y = c(S = 9953009 - 1 - 1, E = 1, I = 1, R = 0), times = times, func = covODE, parms = modelparams))
  return(abs(tempoutput$R - cumsum(incidata$N)))
  }

## Poisson likelihood
ftemp2 <- function(x) {
  modelparams <- c(c(theta = 1/3.5, gamma = 1/6.8), x)
  tempoutput <- as.data.frame(ode(y = c(S = 9953009 - 1 - 1, E = 1, I = 1, R = 0), times = times, func = covODE, parms = modelparams))
  llik <- -sum(dpois(incidata, lambda = c(tempoutput$R[1], diff(tempoutput$R)), log = TRUE))
  return(llik)
}
```

---
# Estimation

```r
# Estimation
initbeta <- rep(0, ncol(B))                                 ## initial parameter
fitresult <- pracma::lsqnonlin(ftemp, initbeta)             ## nonlinear least square fit
#fitresult <- optim(initbeta, ftemp2, method = "L-BFGS-B")  ## poisson fit
betas <- fitresult[[1]]
```

---
# 확진자수 예측

```r
params = c(c(theta = 1/3.5, gamma = 1/6.8), betas)
output <- ode(y = c(S = 9953009 - 1 - 1, E = 1, I = 1, R = 0), times = times, func = covODE, parms = params)
```

코드는 https://github.com/jinseob2kim/covidmodel-seoul/tree/main/docs/modelling/sources 에
- 11월부터, 시군구별 분석 수행
]

---

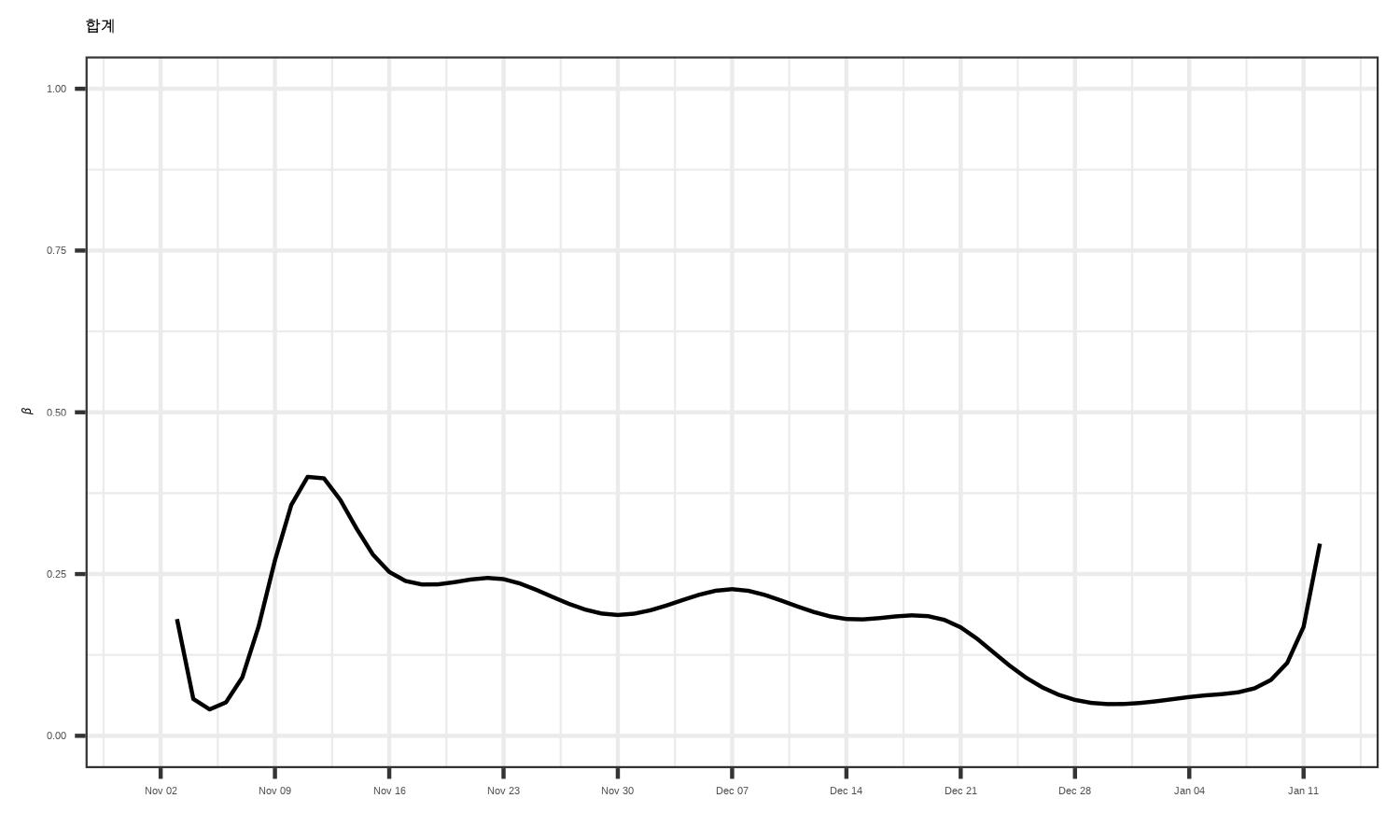

# `$\beta$` 추정

![](beta.jpg)

---

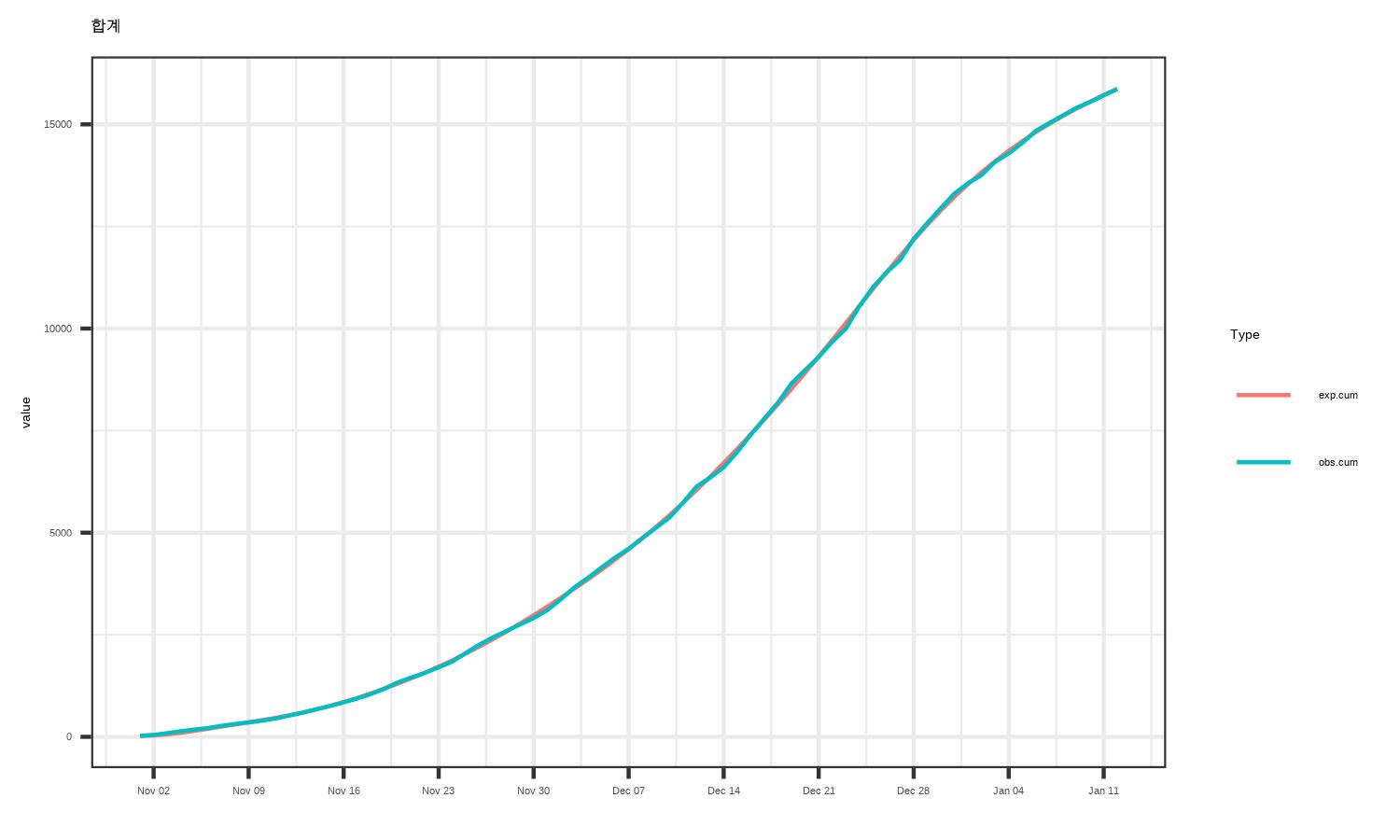

# 누적 확진수 예측
![](cum.jpg)

---
# 보완점
.large[
- `$\beta$`, 예측값의 신뢰구간 구하기가 어려움. 0보다 크다는 제한 두기 위해 `$\exp$` 이용.

-  여러 지표들의 제한범위를 설정하고, 신뢰구간을 자유자재로 구하기 위해 MCMC 등을 이용한 베이지안통계 필요. R에서 [stan](https://mc-stan.org/users/documentation/case-studies/boarding_school_case_study.html) 이용가능.

- 일부 데이터만 이용시(예: 11월 이후) 초기조건 정하기 어려움.
]

---

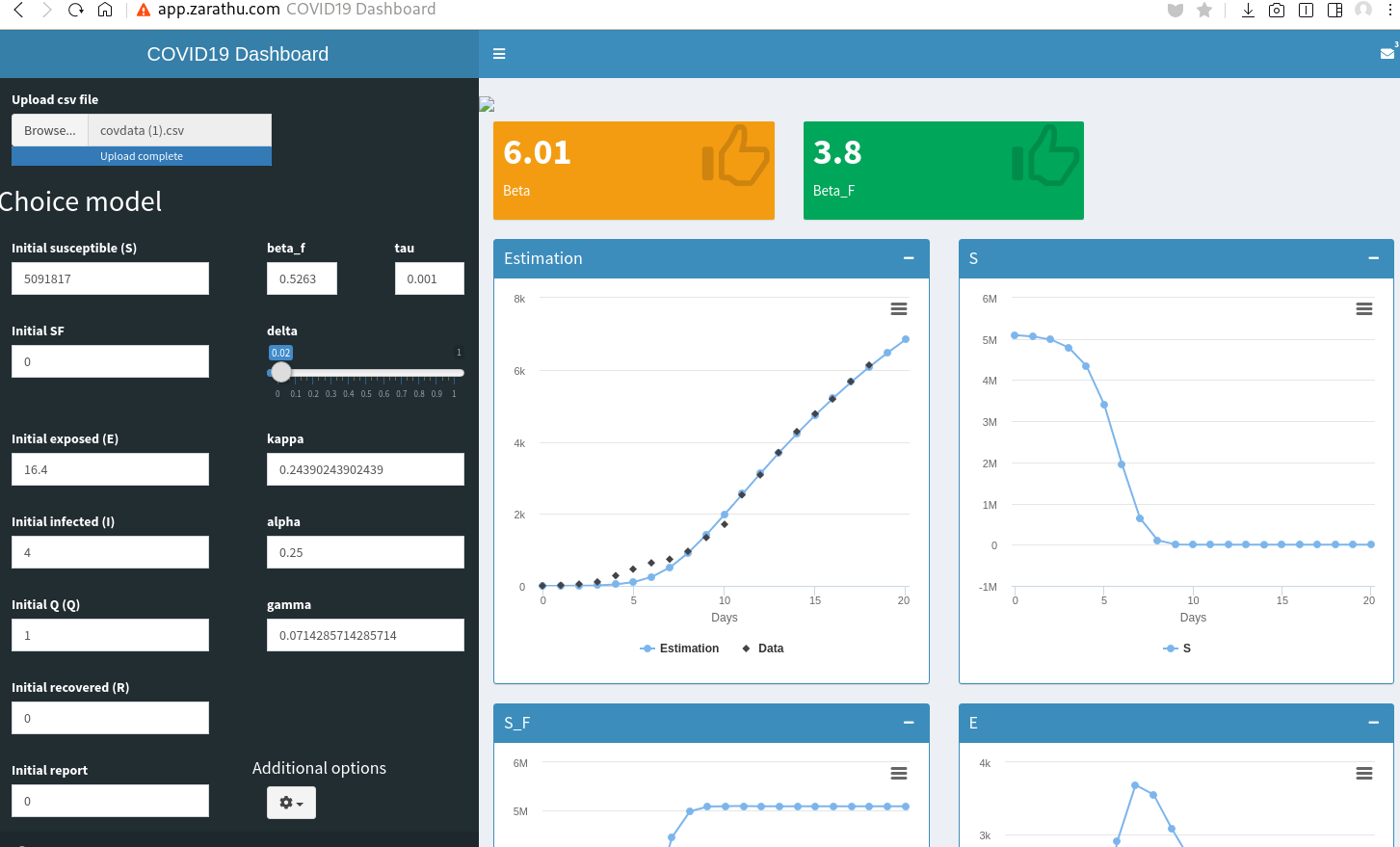

# ShinyApps

[![](shiny.png)](http://app.zarathu.com/konkukmath/covid19/)

---

# Executive summary

- 확진자수 등 **실제 데이터를 활용**, parameter 들을 추정.

- SEIR 에 서울시 확진자수를 적용, **시간에 따라 변화하는 김염률**을 계산함.

- Parameter와 그 파생지표의 범위를 제한하고 신뢰구간을 계산하기 위해, **베이지안통계** 이용 예정.
]

---
